Separation of Semantic Model and Reports

We maintain a clear separation between the semantic model (dataset) and the report layer (thin report).

How We Implement This

  • Use the pbip format
  • Build the dataset/model in its own report (e.g., #mob_dataset).
  • Publish this model to the dataset workspace.
  • Create thin reports (the visual layer) in a separate power bi report file, using a live connection to the published semantic model.
  • Avoid embedding a model inside a report unless absolutely necessary.

Thin Report Layer - Development in Practice

Background

Often, you will want to work in parallel on the dataset and on the report. Especially for refactorings (renaming a measure), or for Drill Through, working in two different pbix files at the same time is not practicable.

To work locally on your report, proceed as follows:

Prerequisite

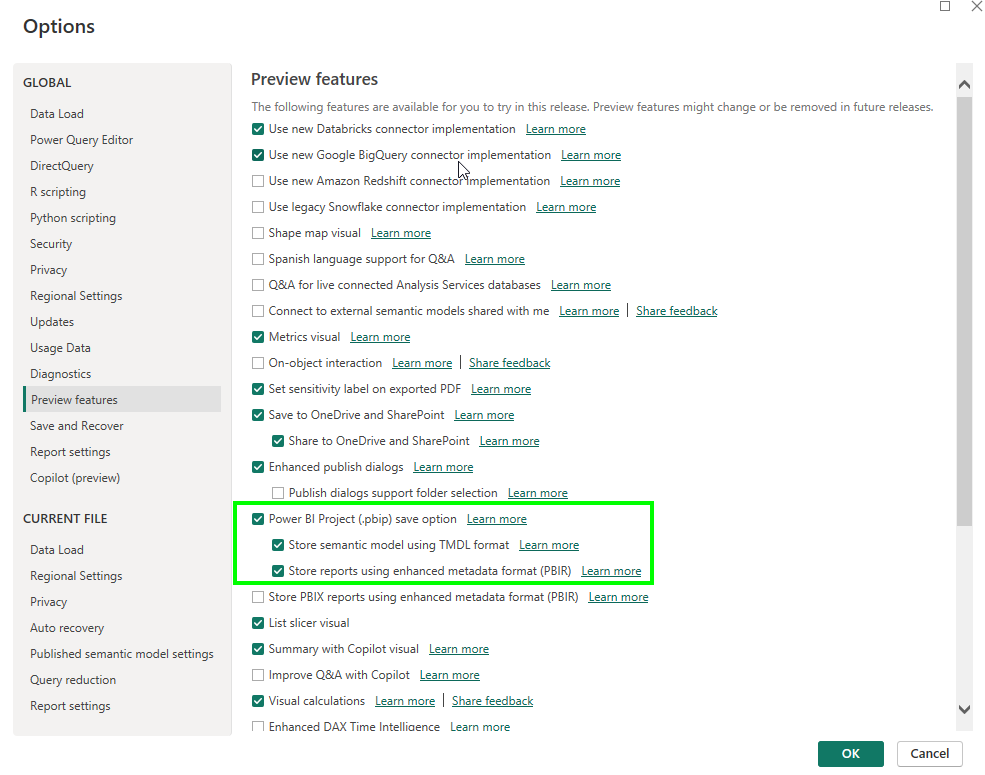

  1. turn on on pbip preview feature in Power BI Desktop options
  2. store your files in pbip format (use save as).


Step-by-step procedure

Each time you want to work on your report in Power BI Desktop, proceed as follows:

  1. in your thin visual report, in the *.Report folder, open definition.pbir

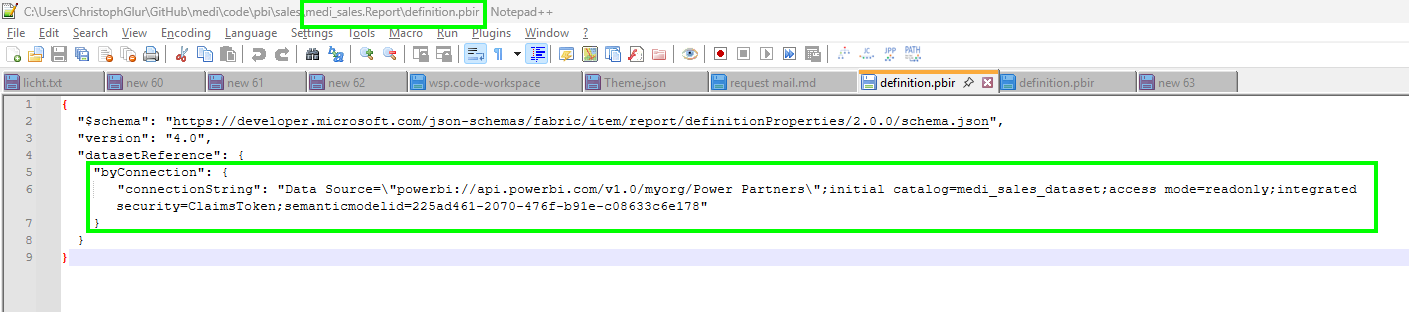

  2. find the byConnection element:

  3. replace it by a byPath element, pointing to the dataset relatively, e.g.

    1. if the dataset is in a different foler called Power Partners: ../../Power Partners/medi_sales_dataset.SemanticModel
    2. if the dataset is in the same folder: ../medi_sales_dataset.SemanticModel

  4. open the thin visual report in Power BI Desktop. You can now work at the same time in the visuals and the DAX layer, debug measures, etc.

  5. close Power BI Desktop

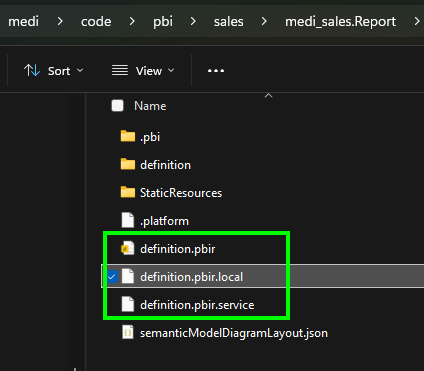

  6. change the byPath back to byConnection (do this using a service and local version of your definition.pbir file. You can then easily copy the right version.)

  7. open the dataset in Power BI Desktop and publish to Power BI Service

  8. open the visual report in Power BI Desktop. Check and publish to Power BI Service
  9. commit everything to git

Why This Matters

  • Consistency: Shared KPI logic is used across all reports.
  • Maintainability: Fixes applied once update all connected reports.
  • Separation of Ownership: Power Partners is responsible for the semantic model, while the client is responsible for the report.
  • Safety: Avoids accidental overwrites when publishing.
  • Collaboration: Report builders do not need to modify the core model.
  • Performance: Only the dataset refreshes; reports stay lightweight and file sizes remain small.

Storage

  • Store your files in the client's git folder, in git/clnt/code/pbi

  • Store them in the same sub-folder as in the workspace (e.g. git/clnt/code/pbi/Purchase)

  • Store them in pbip format

Lineage

flowchart LR

    DWH["DWH"] --> CLN["cln_dataset"]

    CLN --> PURCHASE["Purchase"] & SALES["Sales"]

    PURCHASE --> n1["App"]

    n3["Excel"] --> n2["cln_dataflow"]

    n2 --> CLN



    n1@{ shape: rect}

    n3@{ shape: rect}

    n2@{ shape: rect}

    style n1 fill:#E1BEE7

    style n3 fill:#E1BEE7

    style n2 fill:#E1BEE7

Typically the cln_dataset is in Import mode.

Datasets vs. Dataflows

We prefer dataflows Gen 1 to datasets in these situations:

  1. when we have many Excels

  2. when the load takes very long

  3. when there is an on-prem database (with a Gateway, but without a VPN)

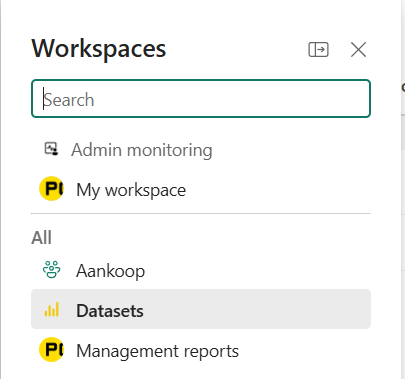

Workspace Structure

Every project should use separate workspaces for semantic models and reporting.

Standard Structure

  • Power Partners
    • Semantic models
    • Dataflows
  • Perspective 1
    • Reports
  • Perspective 2
    • Reports

For example, there could be a Sales perspective and a Production perspective. Perspectives typically have different user bases and use cases, which justifies the separation.
For the management team there is often a separate workspace created to bundle the reports from the different perspectives.


Why This Matters

  • The client code in the dataset name is needed to identify the source of errors in Planio.
  • Provides a clean, understandable workspace layout.
  • Avoids mixing report files with dataset files.
  • Simplifies refresh management.
  • Clients interact only with the reporting layer.
  • Clarifies ownership boundaries.

Security

Correct access management ensures safe and stable client environments.

Rules

  • Provide clients with minimum necessary access (usually Viewer).
  • In order for user to see data in the reports you have to add them to the dataset workspace.

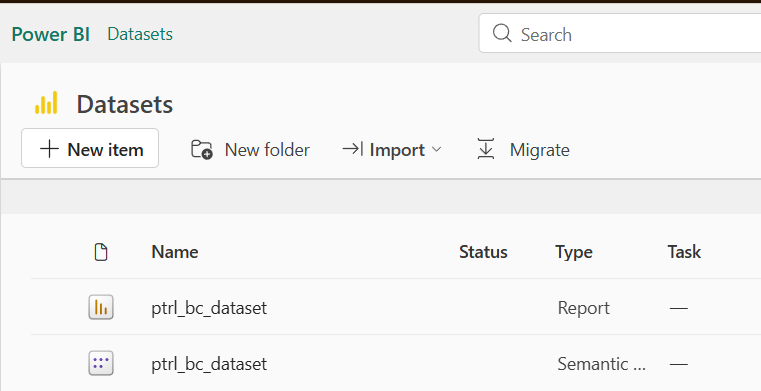

  • Make sure that the reports in the dataset file are blank.
  • Avoid granting Member or Admin rights externally unless justified.
  • Limit workspace users and remove outdated memberships.

Why This Matters

  • Prevents accidental edits or deletions.
  • Simplifies offboarding and maintains control.
  • Maintains a clear permission structure.

Power BI Service Configuration and Refresh

TLDR

Whenever possible, trigger the Semantic Model refresh from ADF of Fabric, and not through a schedule in Power BI Service.

There are two typical approaches to configure dataset refresh:

  1. Refresh by schedule in Power BI

  2. Refresh from Azure Data Factory (ADF)

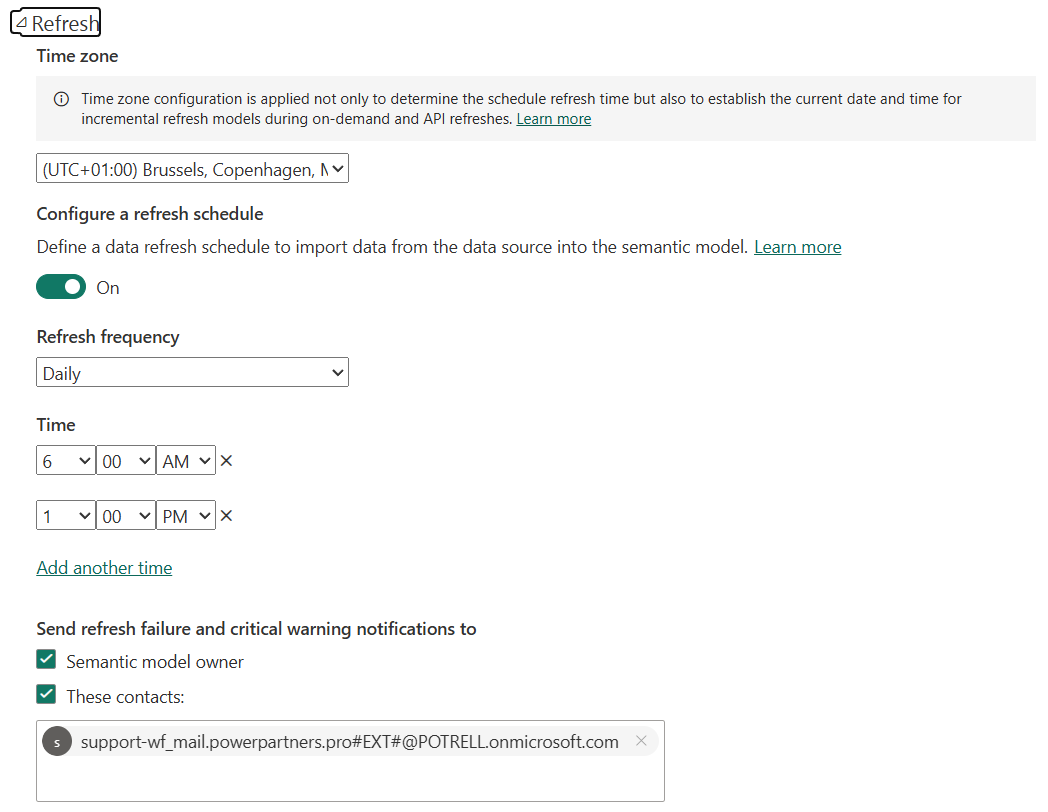

Refresh by Schedule

This approach is suitable for smaller projects.

Always add our user as a guest user to the warning notifications:


Refresh by ADF or Fabric

If supported, this approach is preferable for these reasons:

  1. Better control of the pipeline

  2. Ability to refresh the dataset while the database is in performance mode
